U64. Ultrasound Engine Built For Your Vision
FDA-cleared ultrasound engine with stackable architecture (64 to 256+ channels). Native raw data output and deep API customization seamlessly power your hardware, AI algorithms, and clinical workflows.
Open Ultrasound Engine designed for custom integration.
Integrating clinical ultrasound into energy-based or procedural hardware traditionally meant accepting closed, rigid architectures or forcing clinicians through steep learning curves.
Engineered as an open, modifiable platform, U64 delivers high-fidelity ultrasound imaging and uncompressed
raw data directly into your device's software and machine learning pipelines.
By combining smart procedural presets with deep API control, U64 enables technicians and operators to execute precise imaging protocols.
Built for Your Existing Workflow
Unrestricted Open Architecture & Deep API
Built from the ground up as an open platform. Modify scanning depth, operational parameters, and custom scanning geometries (including circular computational tomography) through full API access.
Direct Raw Data Access for AI
Extract uncompressed, raw acoustic channel data alongside high-resolution clinical images. Feed high-fidelity signals directly into your proprietary AI models and algorithmic workflows.
Stackable Channel Scalability
Scale performance effortlessly. Deploy U64 across 64, 128, or 256 standard channels—or stack multiple U64 modules together to power multi-hundred channel custom transducers for research and specialized surgical guidance at a fraction of traditional costs.
Simplified, Programmable Operation
Automate target depths, focal zones, and tissue presets within your software. Minimize training investment and enable clinicians to run repeatable, multi-stage imaging protocols without interrupting their workflow.
OEM-Ready Compact Form Factor
Ultra-compact, standard hardware footprint designed for seamless embedding within aesthetic, surgical, burn care, and procedural devices.
End-to-End Engineering Support
Leverage the Ursus engineering team for custom hardware modification, API extension, and regulatory guidance to accelerate your product's time-to-market.
Elite Ultrasound Engineered for Integration
-
Channel Count: 64 transmit / 64 receive channels
Transducer Support: Optimized for 64-element to 192-element arrays. (Scalable to custom 256-element arrays).

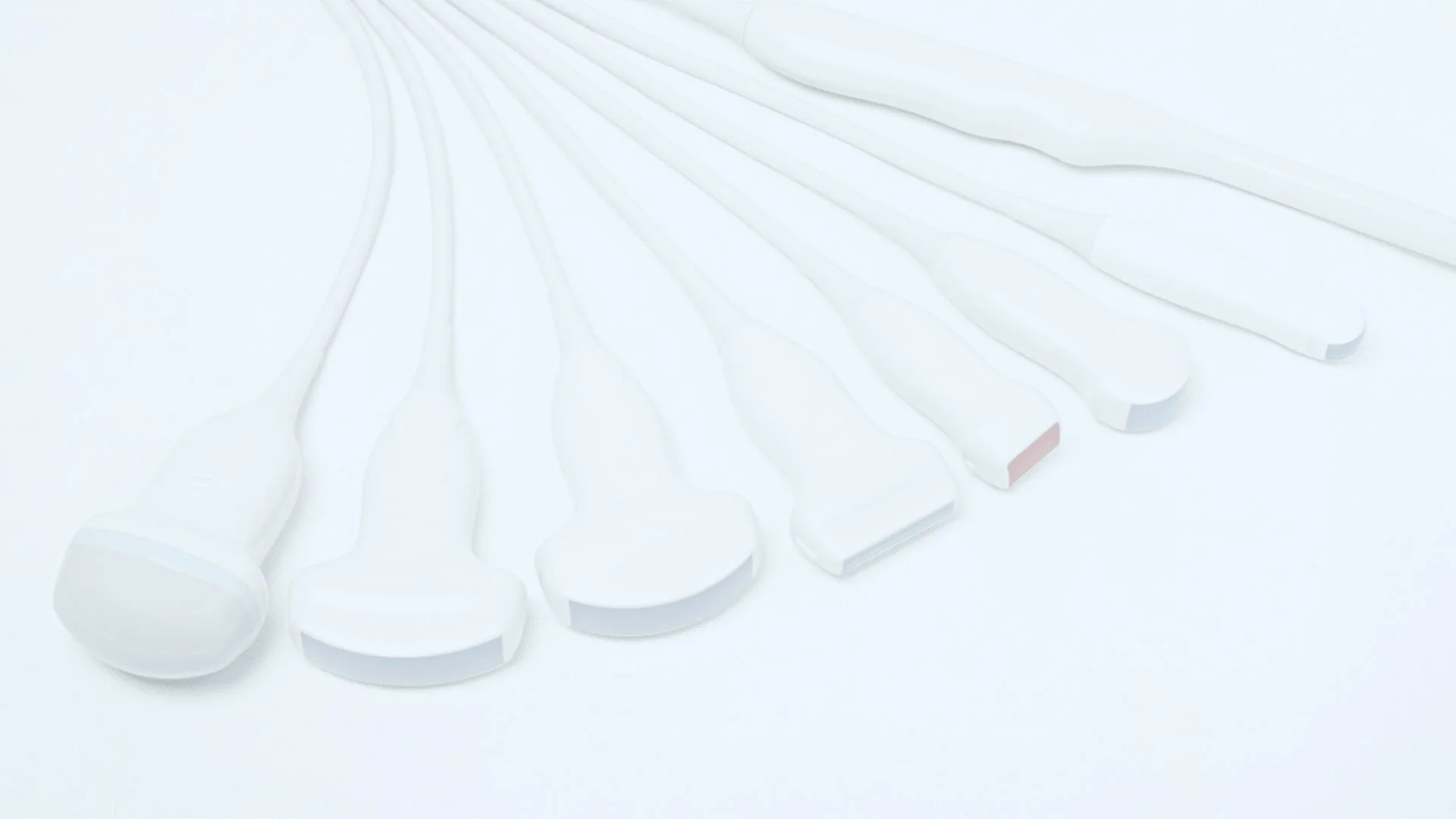

Array Types: Supports linear, curved, phased, or fully custom transducer designs.
Multi-Board Synchronization: Scalable up to 16 synchronized U64 boards for extreme multi-channel counts (up to 4,096 channels).
Sync Triggers: Precision input referred delay clock level synchronization (sub-clocks) for multi-board networks.
External Instruments: Frame and line trigger (IN and OUT) support for synchronizing U64 with procedural or lab equipment.
-
Input Noise: Class-leading ultra-low noise design: 0.8 to 1.5 nV/√Hz per channel.
Analog Bandwidth: Wide 50 MHz bandwidth supporting high-frequency imaging.
Sampling Rates: User-selectable rates: 20 MS/s, 40 MS/s, 65 MS/s, and 80 Ms/s.
Dynamic Range: 72 dBFS dynamic range per channel.
Beamforming: Supported up to high transmit voltage (± 75V bipolar), software controlled.
Beam Generation: Supports two simultaneous beams (at 40 MHz sampling rate).
-
Transmit Voltage: Dynamic range of transmit voltages supported: ± 75V bipolar, software controlled.
Maximum Delay Length: Up to 512 clocks.
Output Data Rate: Native 2.5 Gb/s data transfer (USB-3 over USB-C connector).
Data Formats: Optimized for raw data acquisition. Data output in RF-mode, pre-processed raw B-mode, and scan-converted B-mode.
Raw Data Export: Channel data export option available in research/SDK modes.
-

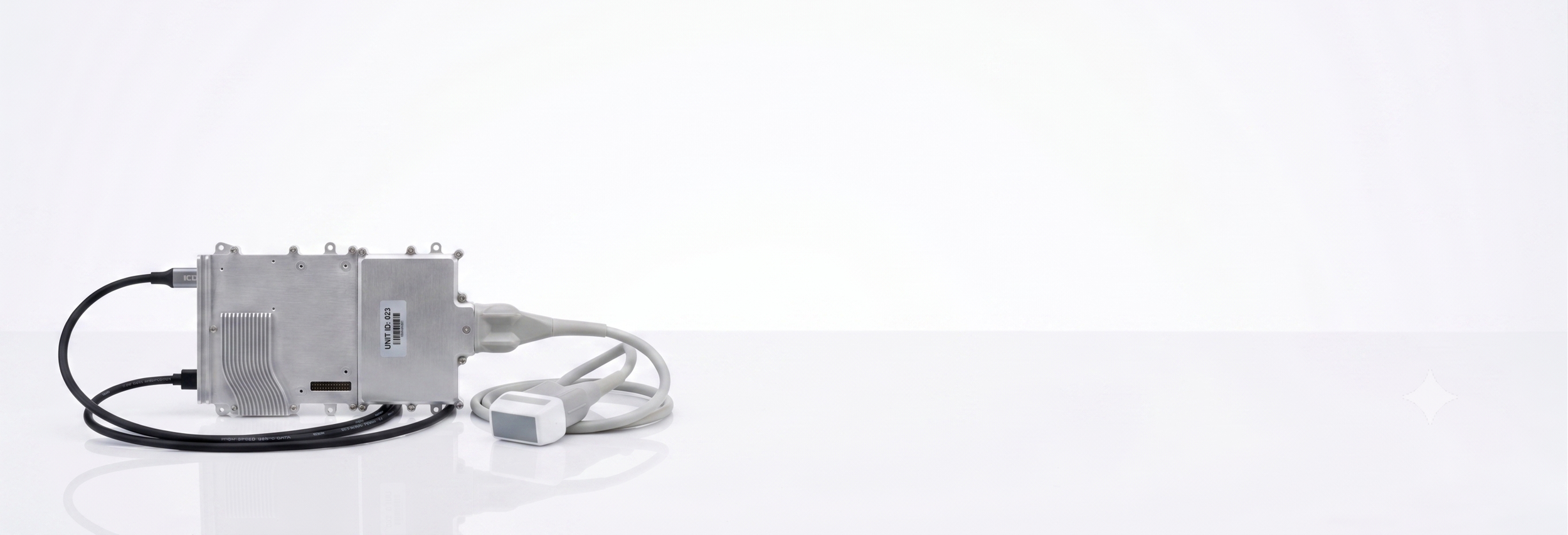

Form Factor: Ultra-compact single-board scanner (SWaP optimized).
Dimensions (Board): 72 mm × 124 mm × 7 mm (W × L × H).
Weight: Beamformer board only: 60g. Within custom metal enclosure: 250g.
Power Consumption: Extremely efficient design[cite: 1]. High Resolution Mode: 14 Watts. Low Resolution Mode: 8 Watts.
Operating Modes: Lightweight and battery-powered. Versatile design supports stationary (PC-based) and portable workflows.
-
Interface: Optimized for smartphone, tablet, and laptop connectivity.
API Support: Full API support for Win10 (Windows) and Android environments.
Matlab Integration: Direct Matlab-controlled option available in research mode for rapid prototyping and algorithm development.
Applications: Ideal for deep OEM, embedded, academic research, and custom procedural needs.
Advanced Features: Integrated support for harmonic imaging, Power Doppler, and Color Doppler in research mode.
Hello, World!
| Feature / Capability | U64 Open Engine | Conventional Closed Handhelds | Traditional Cart Systems |
|---|---|---|---|
| Architecture Access | Fully Open & Modifiable Platform | Closed / Restricted API | Proprietary / Closed |
| Data Output | Raw Acoustic Data + Clinical Image | Flattened B Mode Image Only | Image Only |
| Scalability | Stackable Architecture (64 to 256+ channels) | Fixed Channel Count | Fixed Heavy Console |
| Operator Requirement | Technician-Friendly / Automated Presets | Expert Sonographer | Dedicated Sonographer |
| OEM Hardware Embedding | Seamless Embedding & Co-Engineering | Not Supported | High Cost / Bulky Cart |
Unrestricted Data. Unmatched Customization. See the Difference.
Powered by U64
Deeper Procedural Precision, Zero New Training: A Case Study on U64 Embedded Ultrasound

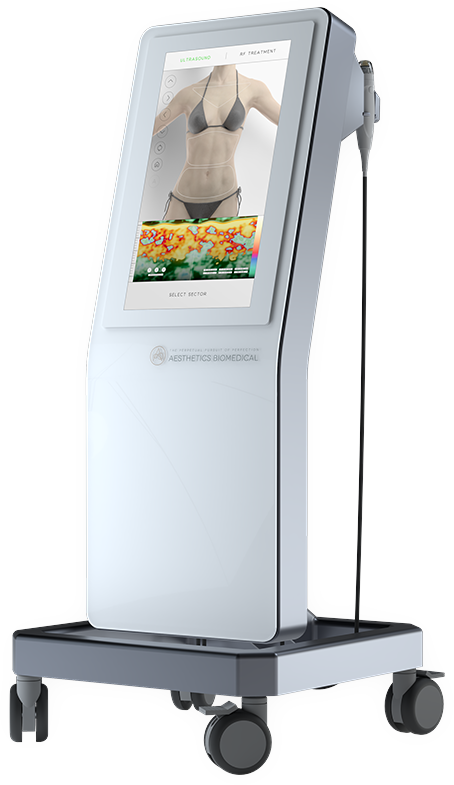

Aesthetics Biomedical integrated the U64 module into their Vivace Ultra RF microneedling platform to enable real-time tissue imaging and depth measurement—the first of its kind.
-

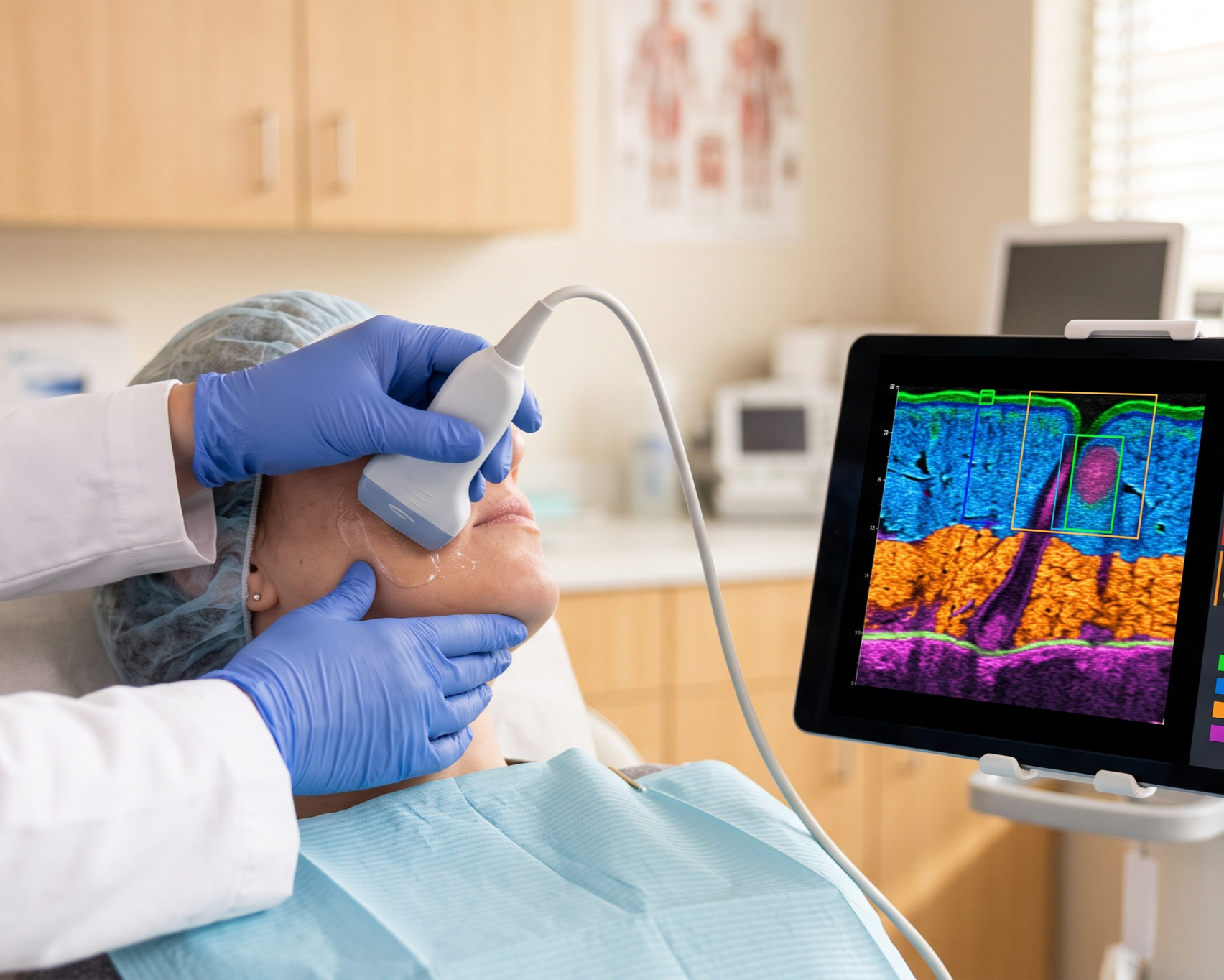

The linear array ultrasound technology enables real-time visualization of skin layers across the treatment area, allowing practitioners to map each patient's anatomy and determine optimal needle depth for personalized treatment plans—delivering precision without requiring specialized ultrasound expertise.
With over 200 systems deployed in dermatology and aesthetic practices, UltraVision™ demonstrates that U64's autonomous imaging capability eliminates training barriers for clinic staff while enabling consistent, superior clinical outcomes across full-body treatment areas.
This deployment validates that embedding ultrasound into procedural devices creates genuine competitive differentiation: practitioners gain diagnostic insight and safety, patients receive personalized, precision results, and clinic operations maintain efficiency—all without adding specialist infrastructure.
U64 on Polaris Dawn: Research Case Study
During the September 2024 Polaris Dawn mission, Ursus deployed the U64 ultrasound system to measure optic nerve sheath dynamics in astronauts at an altitude of 1,408 km—the highest human spaceflight in over 50 years.
-
The research advanced understanding of Spaceflight Associated Neuro-ocular Syndrome (SANS), a vision-related condition linked to fluid shifts in microgravity that poses significant risk on long-duration missions. By demonstrating reliable imaging in the extreme constraints of spaceflight, U64 validated the feasibility of autonomous ultrasound monitoring for deep space exploration.
BUILD YOUR NEXT-GENERATION DEVICE ON THE U64 ENGINE
Partner with Ursus for full technical integration support, API customization, and regulatory guidance to power your hardware vision.
